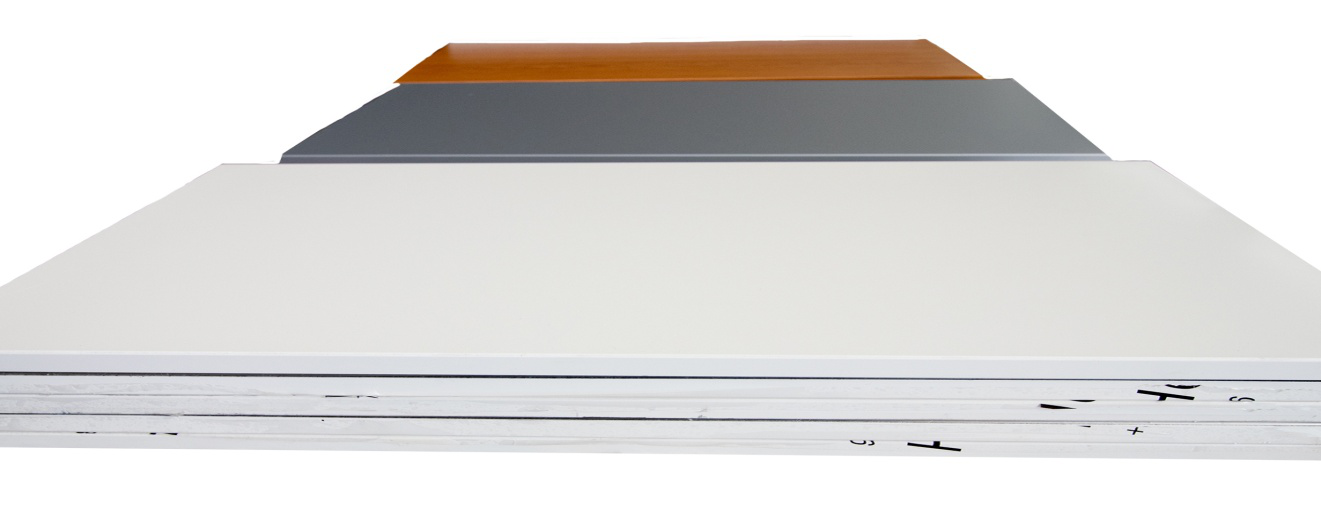

Single color aluminum honeycomb panel
1、 Introduction of single color aluminum honeycomb panel
The panel is mainly made of high-quality 3003h24 alloy aluminum plate or 5052ah14 high manganese alloy aluminum plate. The thickness of the panel is 0.8 ~ 1.5mm fluorocarbon roll coating board or color resistant baking paint. The color resistant paint is better than PVDF in terms of scratch resistance, acid rain corrosion resistance, color change and self-cleaning. The bottom plate thickness is 0.6 ~ 1.0 mm, and the total thickness is 25 mm.
The core material is hexagonal 3003 aluminum honeycomb core, the thickness of aluminum foil is 0.04 ~ 0.06 mm, and the side length is 5 ~ 6 mm. Roller forming technology is used to complete the forming of front and back skin, and the full-automatic machine equipment is used to fold the edge, and the front and back skins are tightly engaged at the installation side. The whole processing process is completed in the modern chemical plant, using hot pressing technology, Due to the high heat conduction value between the aluminum sheet and the honeycomb, the thermal expansion and cold contraction of the inner and outer aluminum sheets are synchronized; there are small holes in the honeycomb aluminum skin, so that the gas in the plate can flow freely; the sliding mounting buckle system will not cause structural deformation during the thermal expansion and cold contraction, so it can ensure a very high flatness. The adhesive: two-component polyurethane high-temperature curing adhesive is adopted, which is passed by the automatic honeycomb composite production equipment It overcomes the brittleness problem of bonding layer of honeycomb panel. The inner layer is a special hexagonal aluminum honeycomb, which is composed of aluminum alloy with hardness up to h18. As the core plate adhered in the sandwich structure, it bears the pressure in the tangential direction. These closely spaced honeycomb like many small I-beams can disperse the pressure from the direction of the panel, so that the stress of the plate is uniform, so that the panel can still maintain a high flatness in a large area.
During installation, it is installed on both sides without mechanical damage. The sliding buckle system allows thermal expansion and cold contraction, and the anti slip buckle at the bottom of the plate can control the expansion direction of the plate. The 25 mm hidden glue seam system is beautiful and has self-cleaning function. The inner and outer panels and the honeycomb structure form a whole after the fabrication of the box honeycomb panel. In addition, the hollow honeycomb can greatly reduce the thermal expansion of the board.
Because of the high wind pressure resistance, shock absorption, sound insulation, heat preservation, flame retardant and high specific strength of honeycomb materials. It has been used in various fields of civil use abroad in the 1960s, and has developed rapidly. In recent years, honeycomb technology has been applied in various fields of civil industry in China. Aluminum honeycomb panel curtain wall has been widely used in exterior wall decoration of high-rise buildings because of its light weight, high strength, high stiffness and many other advantages. The aluminum honeycomb panel with a total thickness of 15mm and 1.0mm thick aluminum honeycomb panel is only 6kg / m2. The weight of honeycomb plate with the same stiffness is only 1 / 5 of that of aluminum veneer and 1 / 10 of steel plate. The aluminum honeycomb core connected with each other is like countless I-beams. The core layer is distributed and fixed in the whole plate surface, which makes the plate more stable. Its wind pressure resistance performance is much better than that of aluminum plastic plate and aluminum veneer, and has the characteristics of not easy deformation and good flatness, even if the cell size of honeycomb panel is large. Can also achieve a very high flatness, is the preferred lightweight materials in the construction industry.
2、 Application field
(1) External wall hanging board of building curtain wall
(2) Interior decoration engineering
(3) Billboard
(4) Ship building
(5) Aviation manufacturing industry
(6) Indoor partition and commodity display platform
(7) Commercial transport vehicle and container car body
(8) Buses, trains, subways and rail transit vehicles
(9) For the modern furniture industry with strict environmental protection requirements, aluminum honeycomb panel is a good material choice in the new century. Its completely non-toxic green quality makes furniture manufacturers less unnecessary environmental protection procedures when processing furniture. In addition, aluminum honeycomb panel can be diversified, such as solid wood, aluminum board, gypsum board, natural marble, etc Honeycomb plate, material selection is convenient.
(10) Aluminum honeycomb partition: the appearance of aluminum honeycomb partition breaks the traditional partition mode, and wins the market share of medium and high-grade office space with its noble, fresh and elegant style.
3、 Performance advantages
(1) Fireproof: aluminum plate is non combustible material.
(2) Corrosion resistance: the surface of aluminum honeycomb panel is treated with epoxy fluorocarbon, which has strong corrosion resistance. There is no pinhole, crack and blister in salt spray for 48 hours.
(3) Environmental protection: honeycomb plate is a pure aluminum vertical product, which does not volatilize any harmful gas to human body, has no radioactivity and can be completely recycled. It is a 100% environmental protection product.
(4) The aluminum honeycomb plate is easy to be disassembled and assembled without damaging the plate. Because of its light weight and convenient transportation, it can be transported to different places for repeated use. This is other partition board cannot compare with it.
